Mini Dumper Pellicano 660 Pro Mix

Name: Mini Dumper Pellicano 660 Pro Mix
SKU: 14881
Availability: InStock

9.550,00€ ~~12.185,00€~~ Vat included

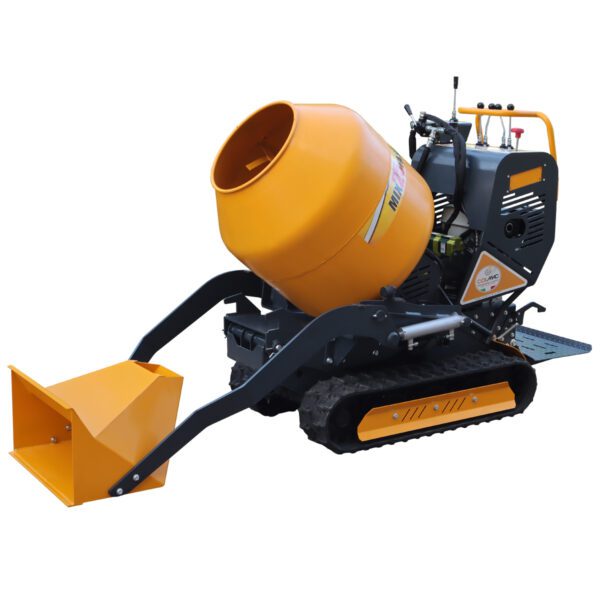

PELLICANO 660 PRO MIX has a loading capacity of 600 Kg.

The main feature that distinguishes this machine is the hydraulic system composed of a type 2 pump, a three-way flow divider, two 250cc orbital hydraulic motors. Thanks to this system you have two speeds (2km/h and 3.6km/h) and the possibility of operating the self-loading shovel, tipping or concrete mixer, while moving forward.

Sei interessato ai nostri prodotti?
Completa il modulo di richiesta informazioni
Ti ricontatteremo noi!

Category: Tracked Mini Dumpers

Description

Width 72 cm

Dumper

Cement Mixing Machine

Max payload 600 Kg

Hydraulic tipping

Max slope 30%

Gasoline

2 speed

Honda GX 270

DASHBOARD
Advance • Steering • Shovel movement • Body overturning • Concrete mixer drive (clockwise and anticlockwise)

SPEED SELECTOR E CONCRETE MIXER ENABLING
Double speed: 2 km/h – 3,6 km/h

LEVER FOR CONCRETE MIXER MANAGEMENT
The lever in question gives the possibility the user to manage the Mix20Fast concrete mixer.

COMPONENTS AND HYDRAULIC SYSTEM
Pump – Cylinder – Tubes – Control valves

TRACKS – TRACK TENSIONERS
The recovery springs mounted on the tensioning system prevent tearing or damaging the track and the transmission components.

EXTERNAL PROTECTIONS
A further protection is given by strong external barriers, these cover the rollers thus avoiding the intrusion of stones or inert foreign material.

Technical Data Sheet

Engine
Honda GX270
6,3 kw – 8,4 Cv – 3600 rpm/min

Engine type
4 Stroke – single cylinder

Fuel tank capacity
5,3 Lt petrol

Starting system
Manual or Electric (optional)

Transmission
Hydraulic

Advancement speed
2 Speed – 2 km/h – 3.6 km/h

Hydraulic motors
250 cc orbital

1 Hydraulic pumps
Type 2 + 3-way flow divider

Max pressure
180 bar

Working pressure
150 bar

Flow rate pumps
31,5 Lt/min a 3000 rpm

Oil tank
14 Lt

Safety system
Overcenter

Inclination
Max 30% (17°)

Load capacity
600 kg flat (350 kg inclined plane)

Tipping system
Hydraulic

Total dimensions
150 x 124 x 83,3 cm

Net weight
425 Kg

Track dimensions
180 mm width 60 mm pitch • 38 link

Track tension adjustment
Tension system with springs semi-automatic

Track rollers
3

1 Double speed selector
2 Mix25Fast management lever
3 Control panel
4 Support handle
5 Honda GX270 engine
6 Operator platform

7 Track guard
8 Hydraulic Pump
9 Track tensioner
10 Plug and Play system
11 250 Lt concrete mixer
12 Self-loading shovel

Honda GX270 6.3 Kw is the engine chosen for this minidumper.
Mix25Fast is the perfect accessory for mixing and transporting building mixes (max 250 Lt). The mixing operation can continue even while moving, reducing manpower and time.
Dumper is the ideal equipment for transporting inert material (m3 0.30), but also liquids (0.21m3) on the flat.
Agricultural/Forestry is the body with sides that can be opened at 90°, 35cm high, in addition to the practical tubular over sides, adjustable in height for the transport of bulky loads.
